Fire protection planner of Kaimann & Isover

Calculate the right fire protection system for pipe penetrations through solid walls and ceilings and lightweight partition walls in just a few simple steps with the help of the fire protection planner. Intuitively operated, the application, outer diameter and wall thickness of the pipe as well as other optional criteria can be entered. The planning assistant then shows the available installation options. Once the right option has been selected, you have access to the appropriate construction drawings, test certificates, technical data and other information.

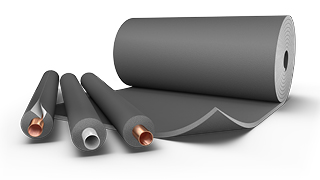

Kaiflex KKplus s1

Product details

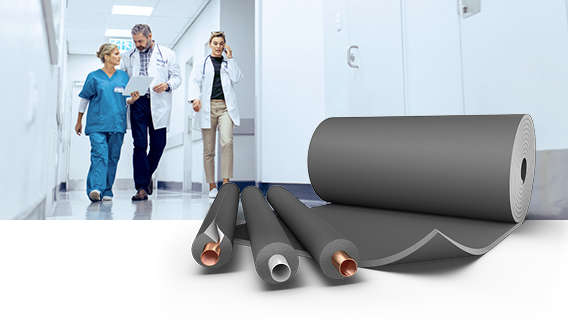

Kaiflex KKplus s1 Beschreibung

Kaiflex KKplus s1

With Kaiflex KKplus s1, Kaimann offers an optimally coordinated insulation system, which in its entirety meets European fire class B/BL-s1, d0 per EN 13501-1 in the event of fire – the highest class attainable with elastomer insulation. The insulation, consisting of FEF (flexible elastomeric foam), a closed-cell synthetic rubber, is thus Kaimann’s highest safety level for areas needing extra fire protection. At smoke development class s1 (“low smoke development”), the insulation meets the strictest European requirements for smoke. For many pipe penetration solutions it provides at least 90 minutes of fire resistance per DIN 4102-11 and EN 1366.

In the event of a fire in occupied areas, the use of Kaiflex KKplus s1 means that escape and rescue routes remain visible longer, even as smoke spreads. The low smoke development of the highest smoke class s1 reduces the risk of injury and property damage by significantly reducing the danger of suffocation and smoke poisoning, as well as the contamination of building inventory and technical equipment

Tubes with patented KaiCene technology, a further development of the standard material, meet s1 classification even without coating, thus offering both low smoke development and high flame retardance. This high-performance material mix thus meets the especially high requirements of fire protection for technical insulation. Additionally, the higher standards for flame retardance for panel materials are met by the use of a low-smoke laminate, which in the event of fire foams up and so acts as a barrier. The result is excellent smoking behaviour.

Kaimann makes it easier to meet your fire safety requirements for technical insulation, and saves you time and money too, since there is no need to change materials for building component isolation in pipe systems. This brings substantial savings in time and costs. The fully coordinated product range, consisting of sheet, tube, pipe support, adhesive, Kaifix ECplus joint adhesive and tape, assures high system dependability. In addition, up to an outside pipe diameter of up to 133 mm for steel and 42 mm for copper, no additional fire protection mat is needed when using Kaiflex KKplus s1 in penetrations through solid structural components.

Benefits

Kaiflex KKplus s1

  • Low smoke emission (s1) according to EN 1305-01
  • Reliable condensation prevention
  • Minimizes energy losses
  • High system reliability

Kaiflex KKplus s2

Product details

Kaiflex KKplus s2 Beschreibung

Kaiflex KKplus s2

Requirements for limited smoke development are tightening across Europe, with more and more demanding measures to restrict smoke from insulation materials in fires. This requirement was made clear in Germany, for example, by the revision of the model administrative regulation MVV TB 2020/1 to define smoke development class s2 as the minimum requirement for flame-resistant building products. The fire resistance duration of building components (e.g. the lead-throughs of piping systems) also plays a significant role.

As a fully coordinated insulation system consisting of sheet, tube, pipe support and adhesive, Kaifix KKplus s2 meets stricter building and fire protection requirements as well as thermal requirements for very effective technical insulation. With building material class BL/B-s2, d0 per EN 13501-1, the insulation already meets the requirements in the bid tender standard.

Thanks to our patented KaiCene technology, the panels can remain uncoated and, like the hose material, help reduce smoke development and improve personal safety in the event of fire. Up to a pipe diameter of 300 mm (including insulation), the s2 panels can also be installed in an s1 system (open tubes).

The insulation is ideal for pipe lead-throughs with fire resistance durations of 90 or even 120 minutes per DIN 4102-11. Kaiflex KKplus s2 is self-extinguishing and does not drip. In addition, up to a pipe diameter of 133 mm for steel and 42 mm for copper, no additional fire protection collar is needed for penetrations through solid structural components.

Kaiflex KKplus s2 reliably prevents the formation of condensation and pipe corrosion. The closed cells provide a full water vapour barrier, effectively reducing dampness and so maintaining the material’s high insulation throughout the service life of the insulated system. Due to its technical properties, the insulation thus contributes to a sustained reduction in energy costs.

Benefits

Kaiflex KKplus s2

  • Limited smoke emission according to EN 13501-01
  • Very high thermal efficiency
  • Reliable long-term performance

Kaiflex KKplus s3

Product details

Kaiflex KKplus s3 Beschreibung

Kaiflex KKplus s3

Efficient and long-term insulation of pipework is of great importance for the energy efficiency and comfort of buildings.

With its very high-level technical attributes, Kaiflex KKplus s3 is the economical alternative for applications requiring the utmost in energy efficiency. This proven closed-cell rubber insulation material has an excellent thermal efficiency of up to λ ≤0.033 (W/m·K) and condensation resistance of up to μ ≥10,000 even at low layer thicknesses, so reliably preventing energy losses and pipe corrosion in the long term.

Kaiflex KKplus s3 is suitable for the technical insulation of refrigeration and air conditioning systems, especially for surfaces and large pipes. The insulation material provides an effective water vapour barrier to ensure reliable insulating performance over the entire operational life of the system.

Kaiflex KKplus s3 sheet material is flexible and easy to work with, and is offered in standard formats from 6 to 32 mm and in thicker versions of e.g. 50 mm, in precut shapes (elbows, strips etc.) and in self-adhesive versions.

Thanks to its antimicrobial and fibre-free structure, the material meets high hygienic requirements and is classified to B-s3, d0, making it especially suitable for insulation in healthcare facilities as well as public, commercial and industrial buildings. For example, it is used in airports, industrial plants, large office complexes and hotels.

Benefits

Kaiflex KKplus s3

  • Reliably prevents condensation
  • High thermal efficiency
  • Reliable long term performance
  • In-built anti-microbial resistance

Kaiflex HFplus s2

Product details

Kaiflex HFplus s2 Beschreibung

Kaiflex HFplus s2

Halogen-free insulation materials are becoming more and more important in technical insulation. Since they are free of PVC, chlorides and brominated flame retardants, they are particularly suited to industrial and specialist applications where toxic combustion gases are a special hazard. This includes their use in maritime, railway, airport and hospital settings.

Kaiflex HFplus s2 insulation materials are uncritically foamed, free of halogens and heavy metals, and meet smoke development class s2 and fire resistance class R90 specifications. This insulation system thus complies with rigorous European requirements for construction products for fire protection and sustainable building. It meets the required safety standards even in demanding environments.

This halogen-free insulation material is approved for many application areas and special requirements with its international certifications. Since it is free of chloride, Kaiflex HFplus s2 prevents stress corrosion cracking and can be installed with confidence for insulating stainless steel pipes, such as those found in food and pharmaceutical production.

For Green Building certification, sustainability must be addressed in the installation of all fixtures and fittings. This naturally also applies to the insulation of technical building installations. The Kaiflex HFplus s2 insulation system fully meets the declaration criteria for low-pollution building materials. Depending on the configuration, it complies with Green Building standards such as BREEAM, DGNB and LEED, and can be used with confidence in sustainable construction.

With its specific structure, this high-quality rubber material for demanding hygienic applications also offers further health benefits. As a closed-cell insulation material, Kaiflex HFplus s2 generates no harmful particles, whether in ongoing operation or during installation and working with the material.

Benefits

Kaiflex HFplus s2

  • Halogen-free (chlorine-, bromine- and PVC-free)
  • Reduction of the risk of stress corrosion cracking when used on stainless steel pipes
  • Good thermal efficiency
  • Reliable long-term performance

Kaiflex HTplus

Product details

Kaiflex HTplus Beschreibung

Kaiflex HTplus

If pipes, valves, flanges or pipe supports are poorly or not continuously insulated, heat loss can be excessively high. In residential buildings or workspaces, this means energy is already lost before the heat even reaches its destination. Thus, insulation plays a central role in energy efficiency by keeping heat where it belongs.

Kaiflex HTplus is a proven, universally usable insulation for interior drinking water, hot and cold water pipes as well as heating pipes, in residential and commercial buildings. With its good heat insulation – heat conductivity is λϑ at +40 °C to ≤0.036 W/(m·K) – Kaiflex HTplus can significantly reduce the energy costs of a building simply by insulating the accessible pipework. At the same time, the low heat conductivity ensures that the defined temperatures for cold water pipes (DIN 1988-200) and hot water pipes (EN 806-2) are safely maintained, preventing the growth of legionella bacteria. Free from CFC and H-CFC gases and fibres, Kaiflex HTplus meets elevated hygienic requirements and contributes to a positive room climate.

For many kinds of wall penetrations, the material provides 90 minutes of fire resistance per DIN 4102-11. It is self-extinguishing, non-dripping, and does not allow the passage of fire. With a building material class of up to BL-s3, d0, Kaiflex HTplus is thus the ideal choice for builders who value good energy efficiency alongside high safety standards and noise insulation.

Kaiflex HTplus is offered in three versions for small diameter pipes – endless tube, standard 2 m tube, and self-adhesive 2 m tube. Even in difficult installation situations, it installs quickly and is easy to work with, which is especially helpful when making special shapes and fittings.

Benefits

Kaiflex HTplus

  • Universally applicable
  • Building material class up to BL-s3, d0 according to EN 13501-1
  • Low thermal conductivity throughout the entire service life
  • Additional protection against microorganisms and mold

U Protect Pipe Section Alu2

Product details

U Protect Pipe Section Alu2 Beschreibung

U Protect Pipe Section Alu2

U Protect pipe solutions provides an easy to install and lightweight efficient solution for thermal and acoustic insulation and fire resistance in HVAC pipe systems, using ULTIMATE mineral wool. ISOVER U Protect pipes provides topclass thermal insulation for hot water and heating pipes and secures the building fire safety for penetrations up to EI 120 according to EN 1366-3. Alufacing provides efficient water vapour barrier when intact and seems carefully taped. U Protect pipe sections are manufactured from inorganic chemically biosoluble materials and do not include anything that would have effect on corrosion and shall not facilitate microbial growth.

Thermal insulation
High class insulation keeps the medium temperature as designed and secures system operating with minimal losses

Fire resistance
Passive fire protection system

Sound insulation
The ability of mineral wool to act as a spring results in reducing vibration and noise emissions in industrial processes

Fast insulation
Thanks to its light weight and high flexibility, it can be installed by one person without any special equipment

Benefits

U Protect Pipe Section Alu2

  • Non combustible Euroclass A2L s1-d0
  • Melting point: ≥ 1000 °C
  • Pipe penetrations sertified for EI 90/120 according to EN1366-3

U Protect Roll 3.1 Alu1

Product details

U Protect Roll 3.1 Alu1 Beschreibung

U Protect Roll 3.1 Alu1

U Protect Roll Alu1 provides topclass thermal insulation for hot water and heating pipes and secures the building fire safety for penetrations up to EI 120 according to EN 1366-3. Rolls are easy to wrap around big diameter pipes and pipe clusters. Alufacing provides efficient water vapour barrier when intact and seems carefully taped. U Protect Rolls are manufactured from inorganic chemically biosoluble materials and do not include anything that would have effect on corrosion and shall not facilitate microbial growth.

Thermal insulation
High class insulation keeps the medium temperature as designed and secures system operating with minimal losses

Fire resistance
Passive fire protection system

Sound insulation
The ability of mineral wool to act as a spring results in reducing vibration and noise emissions in industrial processes

Fast insulation
Thanks to its light weight and high flexibility, it can be installed by one person without any special equipment

Benefits

U Protect Roll 3.1 Alu1

  • Non combustible Euroclass A1
  • Melting point: ≥ 1000 °C
  • Pipe penetrations sertified for EI 90/120 according to EN1366-3

Safe planning of fire protection for pipes and pipe penetrations

As a rule, pipelines must be insulated. Reasons for this include minimizing energy losses and meeting legal requirements. Of course, it makes sense to carry the insulation through walls and ceilings to ensure continuous pipe insulation. In order to additionally ensure a high level of personal safety in the event of a fire, an overall planning concept must also take into account the issues of low smoke development and fire behavior. The specialist planner and specialist insulator, as the decision-maker in the choice of building materials, therefore has a high level of responsibility with regard to the fire protection and energy concept in conjunction with fire protection certificates.

The right solution is what counts

Insulation solutions for fire protection of penetrations are classified according to their fire performance according to EN 13501-1 (reaction to fire) and EN 1366-3 (fire resistance for penetration seals). Among other things, the insulation materials of the two Saint-Gobain subsidiaries ISOVER and Kaimann achieve the best possible building material fire classification classes A2, s1-d0 (non-combustible) for mineral wool and B-s1, d0 (low smoke spread and flame-retardant) for elastomeric insulation materials. The building material classes are composed of the reaction of fire (A2, B etc.), the smoke development in case of fire (s = smoke/smogra, s1, s2, s3) as well as the flaming droplets (d = droplets, d0, d1, d2). In addition, the fire resistance R90 or R120 (DIN 4102) and EI30, EI60, EI90 and E120 (l EN1366-3) is crucial to prevent passage of flames and hot gasses in fire compartments.

Both manufacturers supply comprehensively tested fire protection insulation solutions for combustible and non-combustible pipes as well as pipe penetrations for wall and ceiling openings. Depending on the choice of system (synthetic rubber or fire protection wool/fire protection pipe shells), no product change is necessary in the component penetration and pipe sealing.

Determine the correct insulation constructions for fire protection

The fire protection planner of Kaimann and Isover offers detailed assistance in the planning and application of their fire protection concepts in the field of pipe penetrations. After specifying the thickness of the wall or ceiling, pipe material, pipe outside diameter as well as pipe wall thickness and other options, the user receives the appropriate installation and product variants. After selecting a variant, detailed product information as well as installation drawings, test certificates and tender texts are available for download.

Kaimann - Isover: Safe planning of fire protection system for pipe penetrations
